| Features and Application |
1. Small volume, waterproof, anti vibration, no noise, no contact arc;
2. Photoelectric isolation, high withstand voltage, long service life, strong anti-interference and high reliability;
3. AC load adopts bidirectional thyristor output, zero current on and zero current off;
4. The input signal is compatible with TTO and COMS;
5. .
Application:
Applications: Petrochemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, plastic machinery, fitness equipment, AC motors, incandescent lamps, solenoid valves, entertainment facilities, medical, heating and temperature control equipment, etc.
Especially suitable for anti-corrosion, damp, dustproof, explosion-proof and other occasions. |

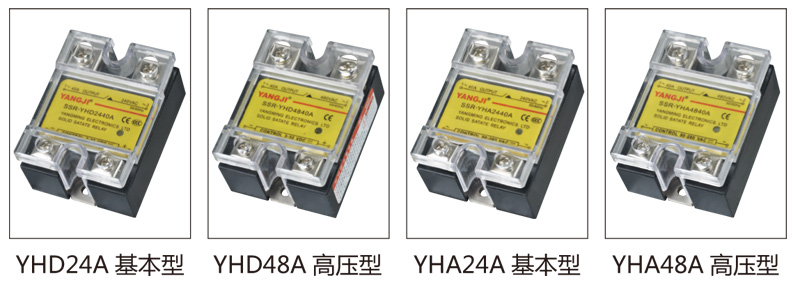

| Model |
YHD2410A YHD2450A
YHD2415A YHD2460A
YHD2420A YHD2475A
YHD2425A YHD2480A
YHD2440A YHD2490A |
YHD4810A YHD4850A
YHD4815A YHD4860A
YHD4820A YHD4875A
YHD4825A YHD4880A
YHD4840A YHD4890A |
YHA2410A YHA2450A
YHA2415A YHA2460A
YHA2420A YHA2475A
YHA2425A YHA2480A
YHA2440A YHA2490A |
YHA4810A YHA4850A
YHA4815A YHA4860A
YHA4820A YHA4875A
YHA4825A YHA4880A
YHA4840A YHA4890A |
| Voltage |
240VAC(Basic) |
480VAC(High-voltage) |
240VAC(Basic) |
480VAC(High-voltage) |
| Current |
10A 15A 20A 25A 30A 40A 50A 60A 75A 80A 90A |
10A 15A 20A 25A 30A 40A 50A 60A 75A 80A 90A |
10A 15A 20A 25A 30A 40A 50A 60A 75A 80A 90A |
10A 15A 20A 25A 30A 40A 50A 60A 75A 80A 90A |
| Control Voltage |
3-32VDC |
3-32VDC |
90-250VAC |
90-250VAC |
| Control Current |
6-25mA |
6-25mA |
12mA |
12mA |
| On-state Voltage Drop |
¡Ü 1.1V |
¡Ü 1.3V |
¡Ü 1.1V |
¡Ü 1.3V |
| On-state Leakage Current |
¡Ü 2mA |
¡Ü 2mA |
¡Ü 2mA |
¡Ü 2mA |
| Switching Time |
10ms |
10ms |
10ms |
10ms |
| Isolation Voltage |
¡Ý2500V |
¡Ý2500V |
¡Ý2500V |
¡Ý2500V |
| Insulation Voltage |
¡Ý2000V |
¡Ý2000V |
¡Ý2000V |
¡Ý2000V |
| Action Indication |
LED |
LED |
LED |
LED |
| Temperature |
-40-80¡æ |
-40-80¡æ |
-40-80¡æ |
-40-80¡æ |
| Size |
58¡Á45¡Á32(mm) |
58¡Á45¡Á32(mm) |
58¡Á45¡Á32(mm) |
58¡Á45¡Á32(mm) |
| Installation Method |
Bolt Fixing M4 |
Bolt Fixing M4 |
Bolt Fixing M4 |
Bolt Fixing M4 |
| Weight |
90g |
90g |
90g |
90g |
Size and
Installation Method(mm) |
 |
| Wiring Diagram |
 |
| Code |
K01A | | |
