| Features and Application |
1. Small volume, waterproof, anti vibration, no noise, no contact arc;
2. Photoelectric isolation, high withstand voltage, long service life, strong anti-interference and high reliability;
3. AC load adopts bidirectional thyristor output, zero current on and zero current off;
4. The input signal is compatible with TTO and COMS;
5. Screw fixed installation, standardized size;
6. 100% load aging test, passed CE, ISO9000 and CCC.
Applications:
Chemical equipment, food machinery, packaging machinery, textile machinery, CNC machine tools, fitness equipment, entertainment facilities, small motors, incandescent lamps, solenoid valves, can also be used as the driving level of high-power electromagnetic relay.
Especially suitable for anti-corrosion, damp, dustproof, explosion-proof and other occasions. |
|
 |

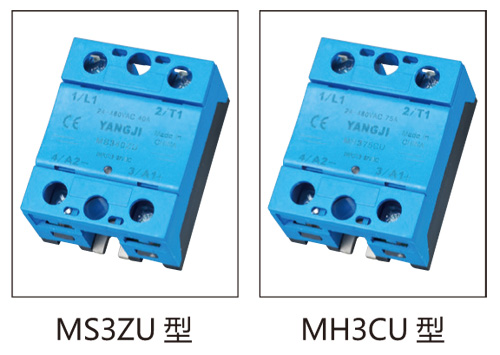

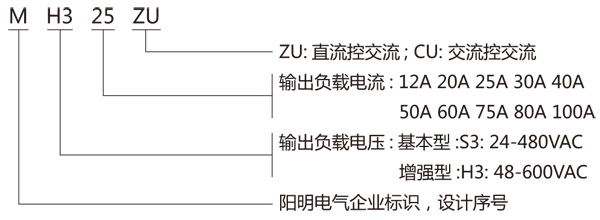

| Model |
MS312ZU
MS320ZU
MS325ZU
MS340ZU |
MH330ZU
MH350ZU
MH375ZU
MH3100ZU |
MS312CU
MS320CU
MS325CU
MS340CU |
MH330CU
MH350CU
MH375CU
MH3100CU |
| Voltage |
24-480VAC |
48-600VAC |
24-480VAC |
48-600VAC |
| Current |
12A 20A 25A 30A 40A 50A 75A 100A |
12A 20A 25A 30A 40A 50A 75A 100A |
12A 20A 25A 30A 40A 50A 75A 100A |
12A 20A 25A 30A 40A 50A 75A 100A |
| Control Voltage |
3-32VDC |
3-32VDC |
80-250VAC |
80-250VAC |
| Control Current |
6-25mA |
6-25mA |
12mA |
12mA |
| On-state Voltage Drop |
¡Ü 1.3V |
¡Ü 1.3V |
¡Ü 1.3V |
¡Ü 1.3V |
| On-state Leakage Current |
¡Ü 2mA |
¡Ü 2mA |
¡Ü 2mA |
¡Ü 2mA |
| Switching Time |
10ms |
10ms |
10ms |
10ms |
| Isolation Voltage |
¡Ý2500V |
¡Ý2500V |
¡Ý2500V |
¡Ý2500V |
| Insulation Voltage |
¡Ý2000V |
¡Ý2000V |
¡Ý2000V |
¡Ý2000V |
| Action Indication |
LED |
LED |
LED |
LED |
| Temperature |
-40-80¡æ |
-40-80¡æ |
-40-80¡æ |
-40-80¡æ |
| Size |
58¡Á45¡Á29(mm) |
58¡Á45¡Á29(mm) |
58¡Á45¡Á29(mm) |
58¡Á45¡Á29(mm) |
| Installation Method |
Bolt Fixing M4 |
Bolt Fixing M4 |
Bolt Fixing M4 |
Bolt Fixing M4 |
| Weight |
130g |
130g |
130g |
130g |

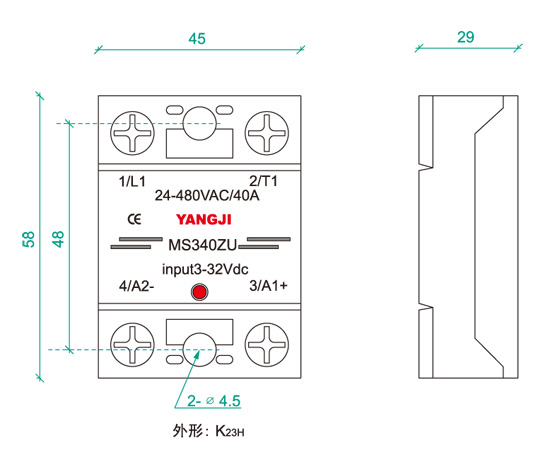

| Size(mm) |
 |

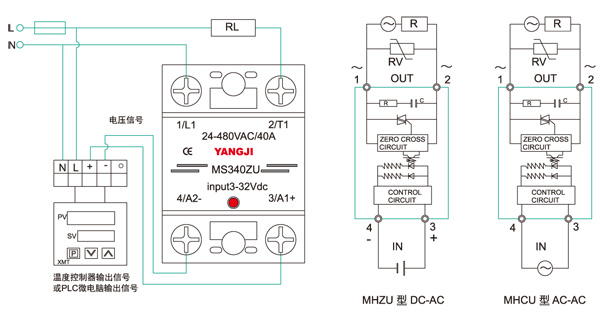

| Wiring Diagram |
 |
| Code |
K23H | | |
